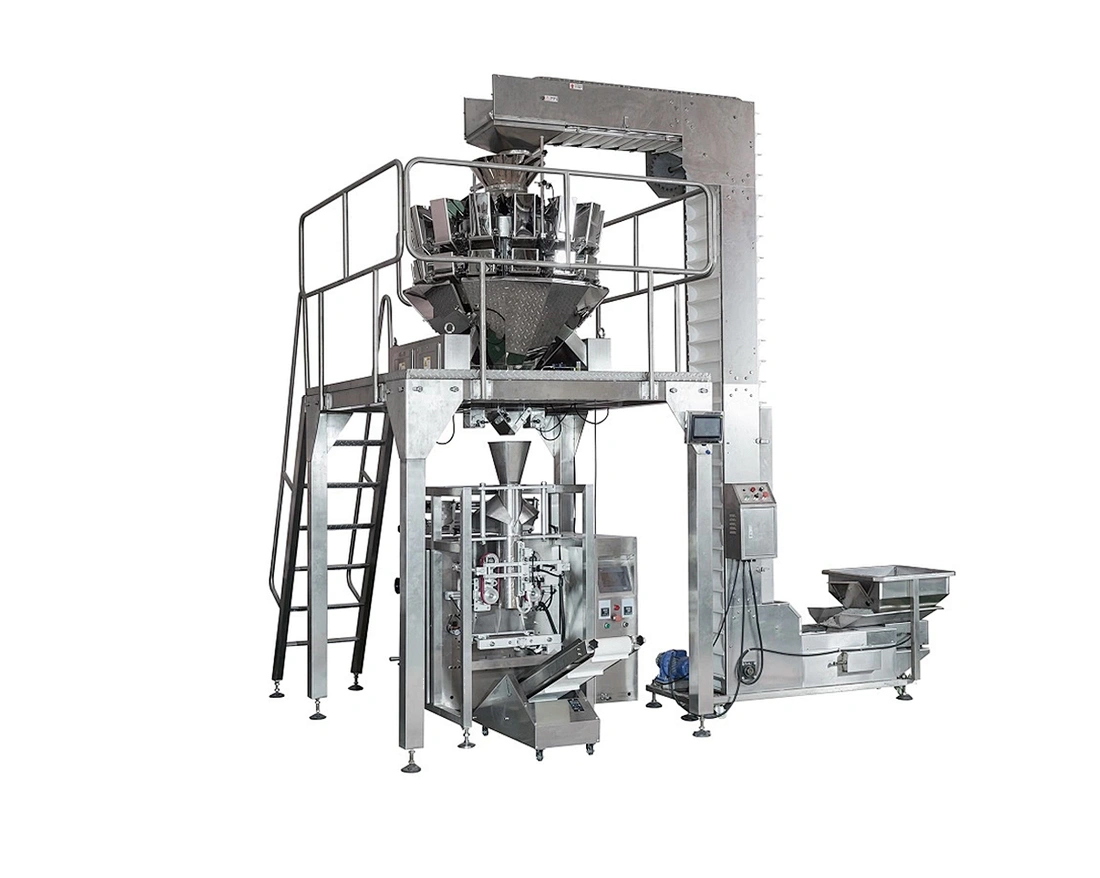

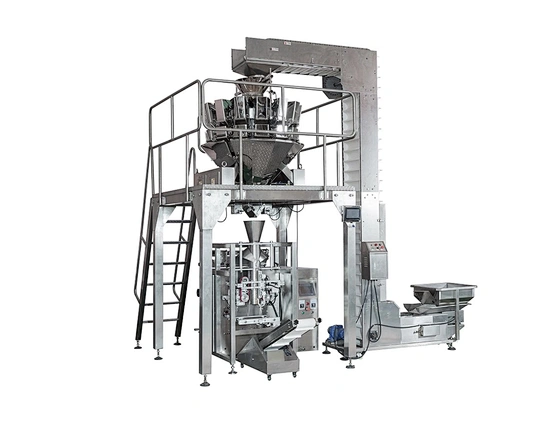

VFFS Large vertical type pouch packing machine
HCV-420
Quantity:
Applications:
The machine is suitable for packaging of soft pouch powder , Packing material include several kinds of heat-seal lamination, such
as PET/plated AL/PE, PET/PE, NYLON etc.
Features
* Computerized touch screen, easy to adjustments and operation, and easy to change products, with exception appearance system,easily and rapidly to repairing;
* Could be automatically to finish making bags, sealing, printing, and optional functions
* Design with alarming for clipping material, door unclosed, rolled film on wrong position, no print tape, no rolled film etc;
* The advanced design ensures that it is very convenient for adjustment, operation and maintenance when different profession use;
* It can support the use of a variety of automatic metering equipment at home and abroad.
The machine is suitable for packaging of soft pouch powder , Packing material include several kinds of heat-seal lamination, such
as PET/plated AL/PE, PET/PE, NYLON etc.
| Model | HCV-420 | HCV-520 | HCV-620 |
| Bag size | (L) 80-300mm (W) 80-200mm | (L) 100-350mm (W) 100-250mm | (L) 100-420mm (W) 140-300mm |
| Film width | Max.420mm | Max.520mm | Max.620mm |
| Film thickness | 0.04-0.10mm | 0.04-0.10mm | 0.04-0.10mm |
| Measuring range | Max.1000ml | Max. 2000ml | Max.3000ml |
| Packing speed | 20-100 bags/min | 20-60 bags/min | 10-40 bags/min |
| Air consumption | 0.65Mpa, 0.4m³/min | 0.65Mpa, 0.4m³/min | 0.65Mpa, 0.6m³/min |
| Packing material | All laminated film such as PET/PE, PET/AL/PE, Nylon/PE, etc.; PE (confirm when order) | All laminated film such as PET/PE, PET/AL/PE, Nylon/PE, etc.; PE (confirm when order) | All laminated film such as PET/PE, PET/AL/PE, Nylon/PE, etc.; PE (confirm when order) |
| Power supply | 220V/380V 50-60Hz | 220V/380V 50-60Hz | 220V/380V 50-60Hz |
| Power | 2.8kw | 3kw | 3.5kw |
| Dimension | L1320 x W1050 x H1750mm | L1520 x W1170 x H1770mm | L1600 x W1400 x H1900mm |
| Weight | 450kg | 550kg | 700kg |
Features
* Computerized touch screen, easy to adjustments and operation, and easy to change products, with exception appearance system,easily and rapidly to repairing;
* Could be automatically to finish making bags, sealing, printing, and optional functions
* Design with alarming for clipping material, door unclosed, rolled film on wrong position, no print tape, no rolled film etc;
* The advanced design ensures that it is very convenient for adjustment, operation and maintenance when different profession use;
* It can support the use of a variety of automatic metering equipment at home and abroad.
