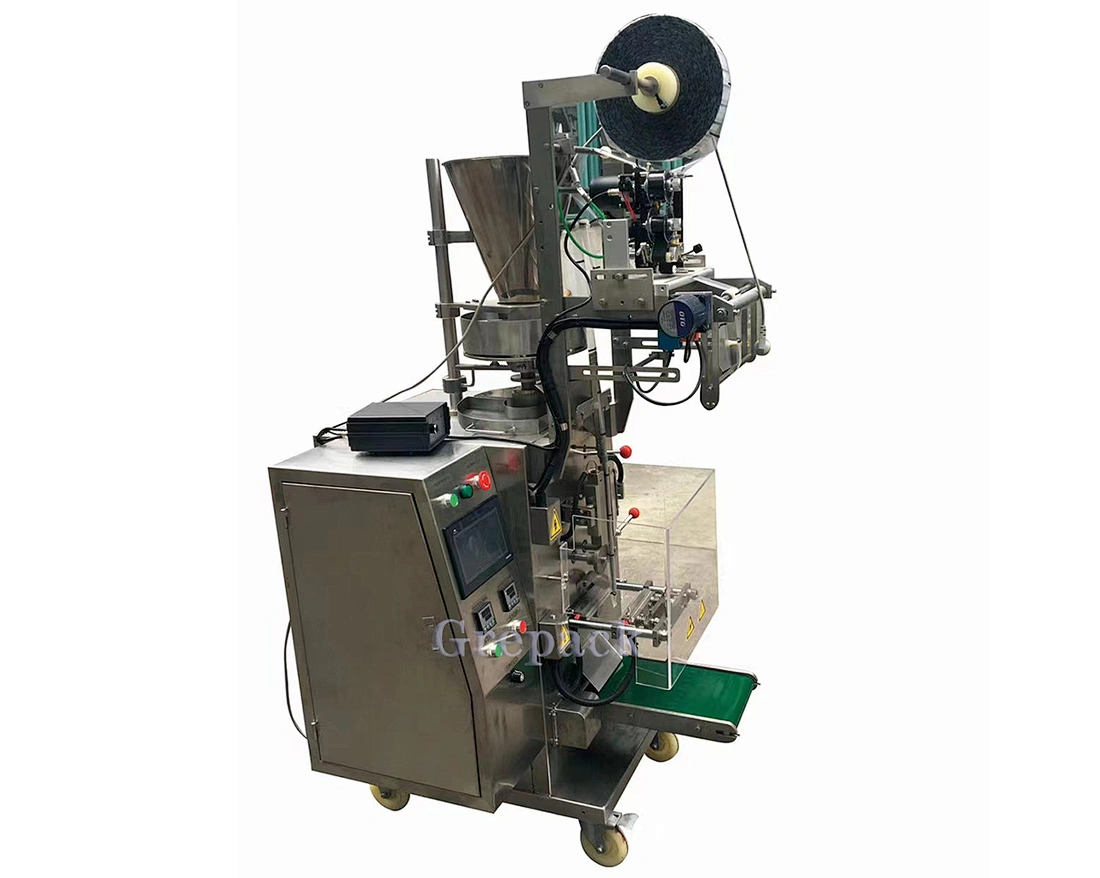

Vertical small sachet packing machine
HCV-240,HCV-300
Quantity:
Applications:
The machine is suitable for packaging of soft pouch from film roll , Packing material include several kinds of heat-seal lamination, such as PET/plated AL/PE, PET/PE, NYLON etc
Features
1. Computerized touch screen, easy to adjustments and operation, and easy to change products, with exception appearance system,easily and rapidly to repairing;
2.Could be automatically to finish making bags, sealing, printing, and optional functions
3.Design with alarming for clipping material, door unclosed, rolled film on wrong position, no print tape, no rolled film etc;
4.The advanced design ensures that it is very convenient for adjustment, operation and maintenance when different profession use;
5. It can support the use of a variety of automatic metering equipment at home and abroad.
The machine is suitable for packaging of soft pouch from film roll , Packing material include several kinds of heat-seal lamination, such as PET/plated AL/PE, PET/PE, NYLON etc
| Model | HCV-240 | HCV-300 |

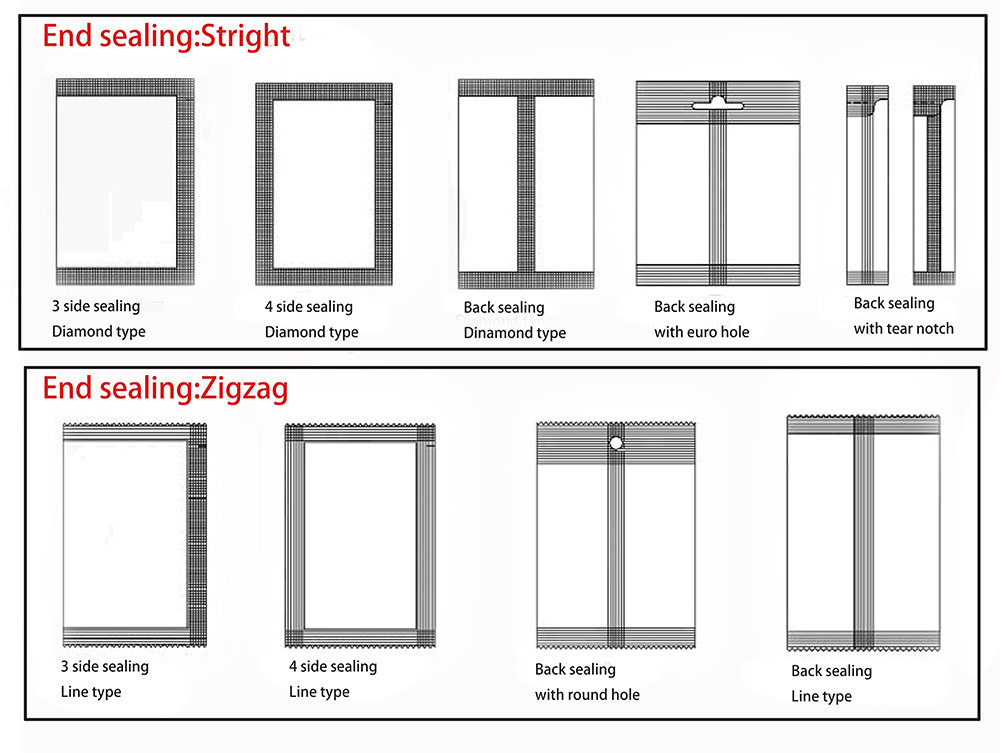

| Bag shape | 3 /4 side bagsealing | 3 /4 side bagsealing, or stick bag back sealing |
| Measurement method | Cup type | |
| Range | 5-100ml | 5-300ml |
| Bag size | W: 30-120mm L: 30-170mm (3/4sides seal) | W:30-150mm L: 30-170mm (3/4sides seal) W:20-140mm L: 30-170mm(stick bag) |
| Speed | 20-50 bag/min | |
| Voltage | 220v 50-60Hz | 220v 50-60Hz |
| Power | 1850W | 2200W |
| Net weight | 200kg | 250kg |
| Machine size | 800x1000x1700mm | 920x1000x1700mm |
Features
1. Computerized touch screen, easy to adjustments and operation, and easy to change products, with exception appearance system,easily and rapidly to repairing;
2.Could be automatically to finish making bags, sealing, printing, and optional functions
3.Design with alarming for clipping material, door unclosed, rolled film on wrong position, no print tape, no rolled film etc;
4.The advanced design ensures that it is very convenient for adjustment, operation and maintenance when different profession use;
5. It can support the use of a variety of automatic metering equipment at home and abroad.
