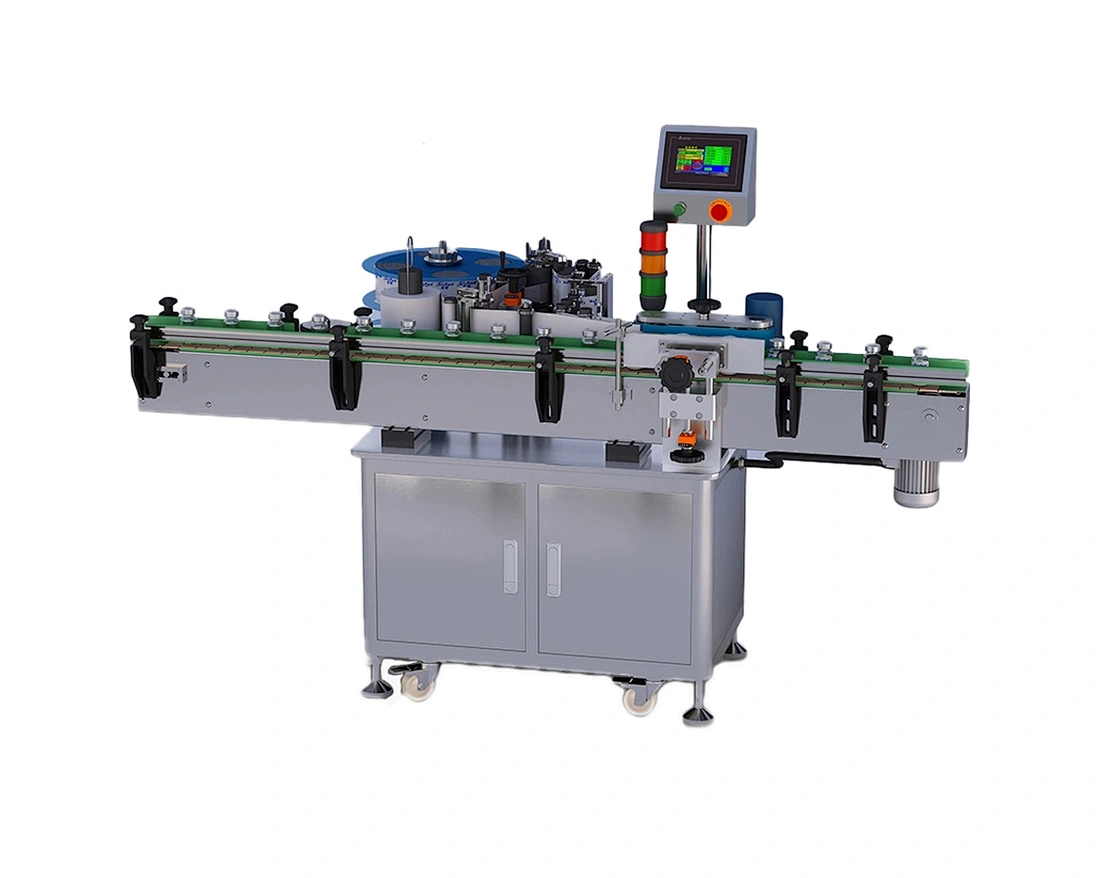

Vertical round bottle sticker lable machine
MPC-AS
Quantity:
The machine is widely used for cylindrical containers in food, medicine, daily chemical and other light industries.Adapt PLC system,very convenient to operate and control.The human-machine touch screen automatically adjusts related parameters according to the specific input values.And the rich failure display function can realize high-speed labeling.
Specification
Specification
| MODEL | MPC-AS |
| DRIVE | Step Motor |
| BOTTLE DIAMETER | 20-100mm |
| BOTTLE HEIGHT | 20—400mm |
| LABELING SPEED | 60-140pcs/min |
| LABELSIZE | Width:10-120mm Length:15-300mm or custom |
| PRECISION | ±1mm |
| LABLE ROLL | Max:300mm |
| LABLE CORE | Stander:75mm |
| MACHINE SIZE | 1600*800*1300mm |
| WEIGHT | 220kg |
| POWER | AC 220V/380V 50/60HZ 750W |
