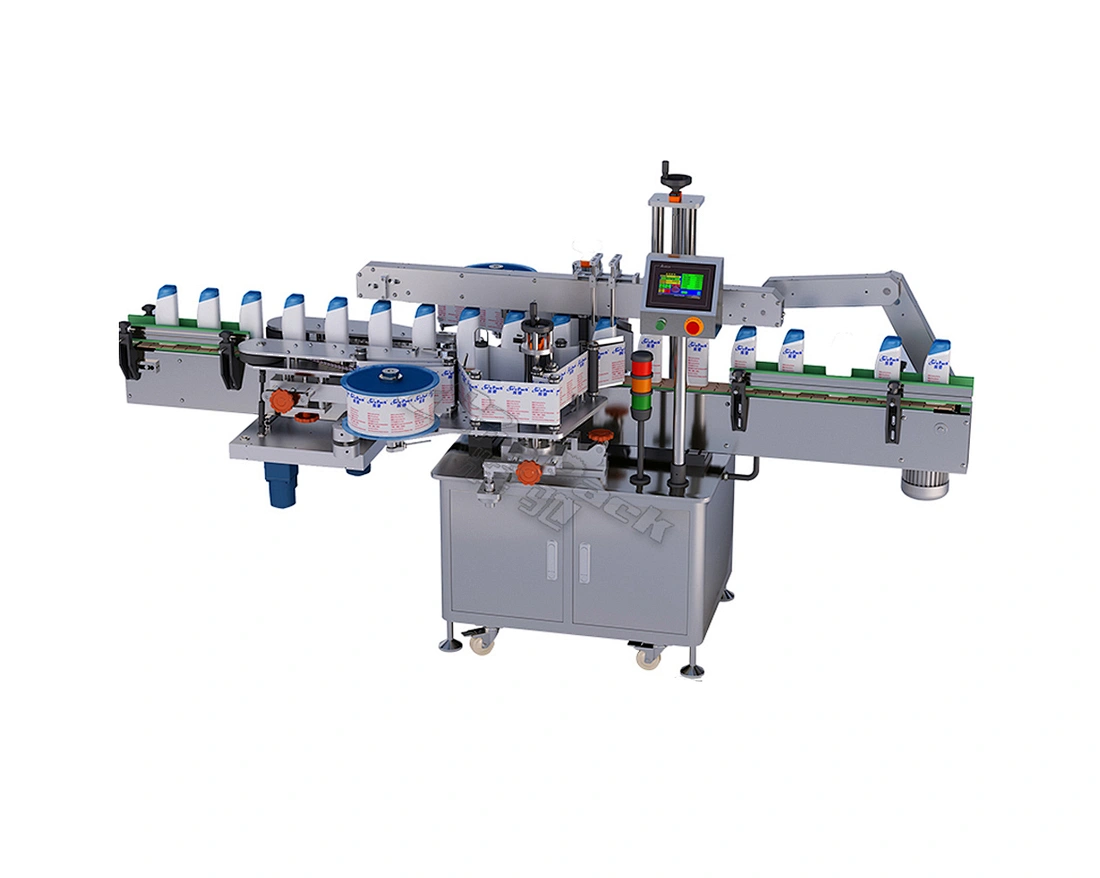

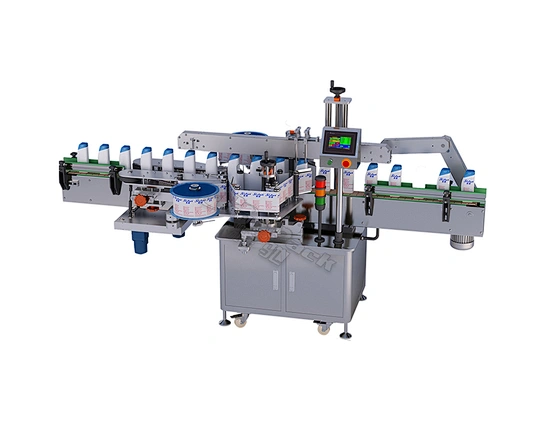

Square ＆round bottle 2＆3sides lable machine
MPC-DS
Quantity:

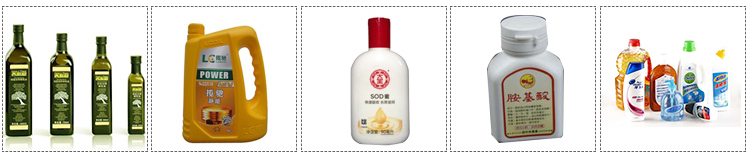

This machine is used for the surface labeling for one side or two sides of the round, square and flat objects in such industries as food, medicine, cosmetics and cultural supplies and so on.Adapt PLC system,very convenient to operate and control.The human-machine touch screen automatically adjusts related parameters according to the specific input values.
Parameters
Parameters
| Model | MPC-DS |
| Dirive | servo motor driven |
| Direction | Left to Right |
| Bottle Diameter | 30-130mm |
| Bottle Height | 20-200mm |
| Labeling Speed | 80-200pcs/min |
| Label Size | Width:15-140mm Length:15-220mm Machine will be customized if exceeding the size |
| Accuracy | ±1mm |
| Label Roll Core Diameter | Max:300mm |
| Machine Size | 2800*1300*1500mm |
| Weight | 280kg |
| Powder | AC 220V/380V 50/60HZ 2500W |
