Sauce ＆ honey filling line
GP5600
Quantity:
Grepack is one of the toppest labeling machine,automatic filling line,automatic sauce filling line in China.During these years of exporting , Grepack now has rich experience in the worldwide markets

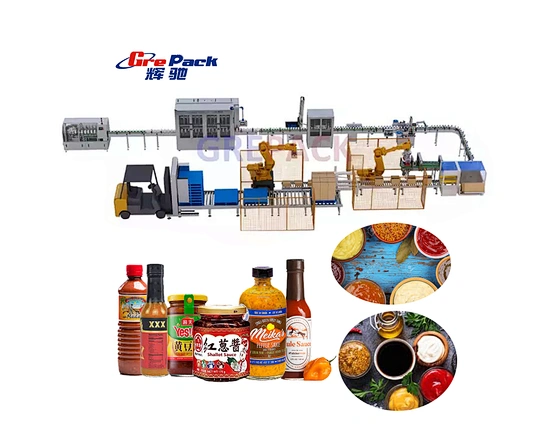

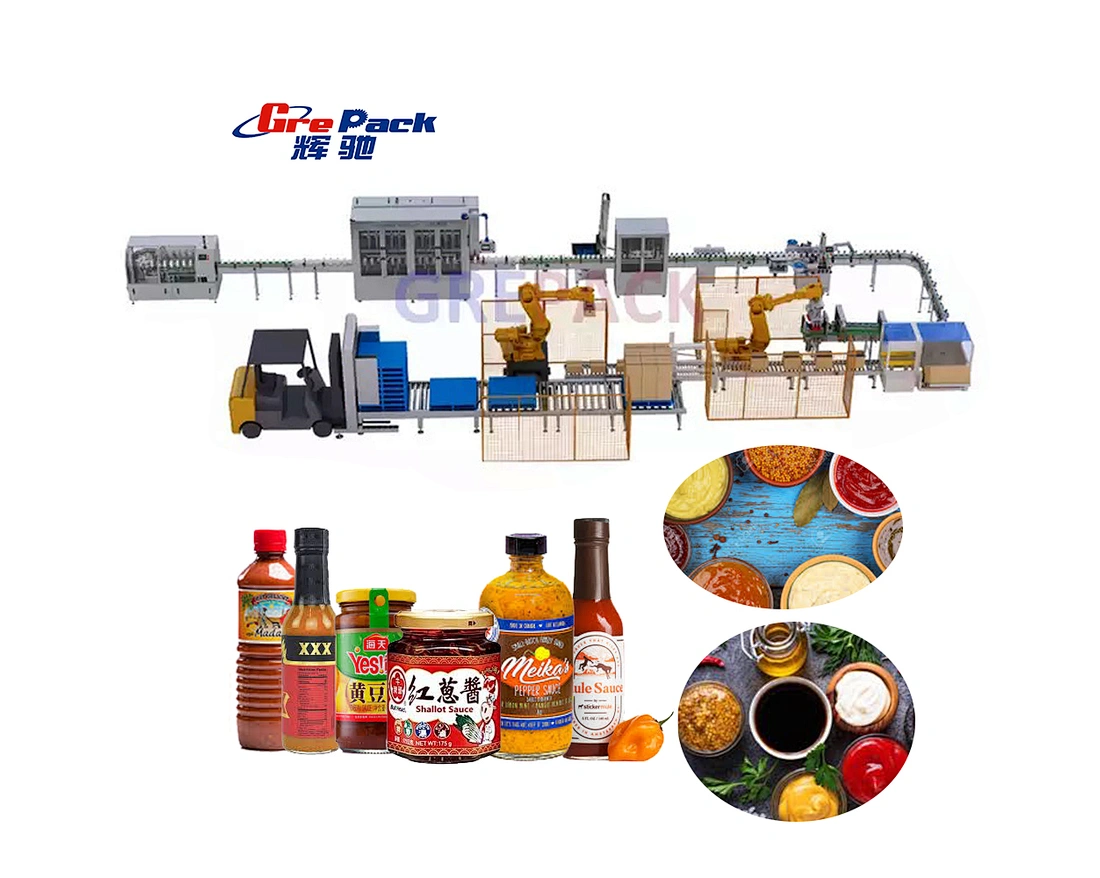

The whole filling line is with servo motor controlled bottle filling machine , capping machine and cap feeder ,labeling machine ,and so on.
Main characteristics
1. The machine adopts servo motor to control filling volume with high precision.
2. Customers will be able to set and change parameters via touch screen.
3. Filling nozzle and filling frame is controlled by cylinder
4. This machine will alarm or automatically stop when happens unconventionality circs (such as account mistake, bottle missing )
5. Not enough bottles coming to the filling position , no filling.
The whole filling line is with servo motor controlled bottle filling machine , capping machine and cap feeder ,labeling machine ,and so on.
| Model | Unit | GP5600 | ||||||
| Nozzle | PCS | 2 | 4 | 6 | 8 | 10 | 12 | 16 |
| Filling volume | Ml | 20-100ml, 100-1000ml, 200-3000ml, 500-5000ml | ||||||
| capacity | B/h | 600-800 | 720-1300 | 1200-1900 | 1400-2600 | 1600-3200 | 1800-4000 | 5000-6000 |
| Tolerance | % | ≤+-0.5% | ||||||
| voltage | V | Single or Three-phase four-wire system AC220V 380V ±10% | ||||||
| power | KW | 2 | 2.5 | 2.5 | 2.8 | 3.5 | 4 | 4.5 |
| Air pressure | MPA | 0.55-0.8 | ||||||
| Air consume | M3/min | 0.7 | 0.8 | 1 | 1.2 | 1.2 | 1.8 | 2 |
Main characteristics
1. The machine adopts servo motor to control filling volume with high precision.
2. Customers will be able to set and change parameters via touch screen.
3. Filling nozzle and filling frame is controlled by cylinder
4. This machine will alarm or automatically stop when happens unconventionality circs (such as account mistake, bottle missing )
5. Not enough bottles coming to the filling position , no filling.
