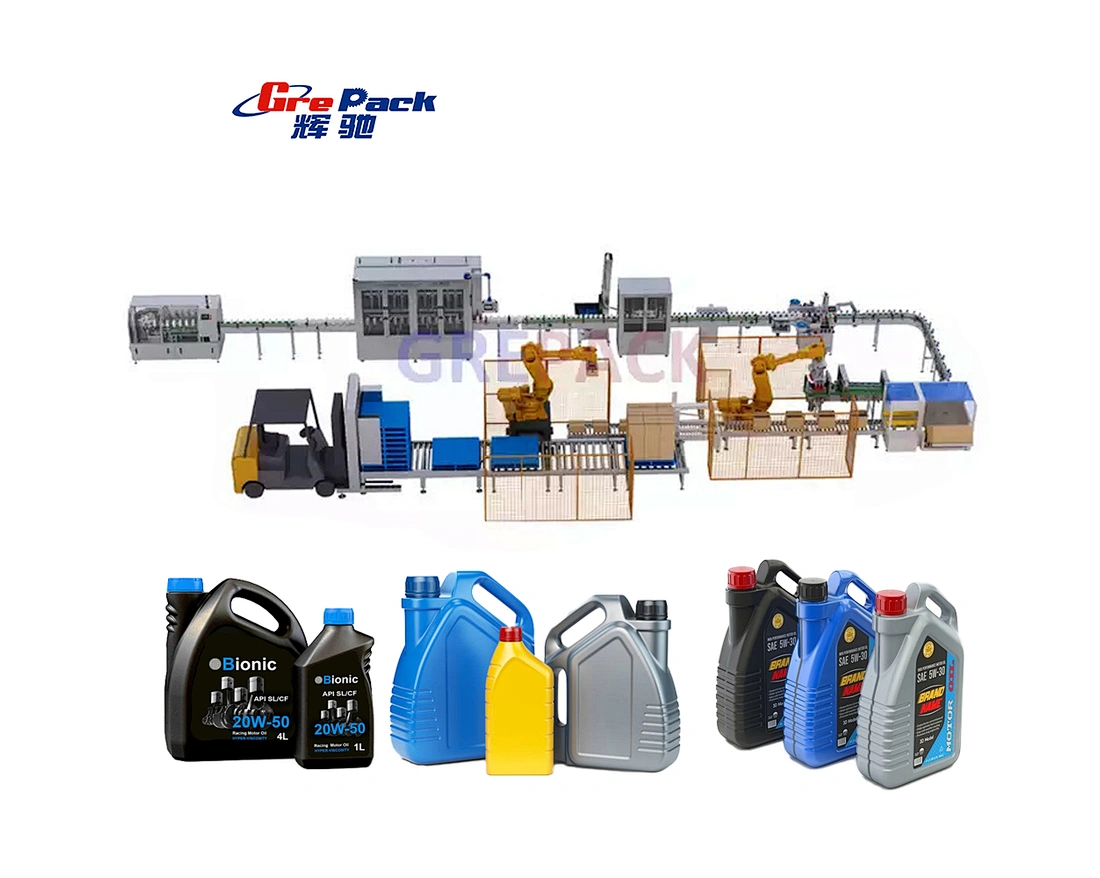

Lubricant oil filling line
GP5600
Quantity:
Grepack’s lubricant oil filling machine,lubricant oil filling line are more and more popular at home and abroad which has low cost , high quality and convenient
The whole filling line is with servo motor controlled bottle Filling machine , capping machine and cap feeder ,labeling machine , and case packing system , total line .
Features:
1. One year Guarantee , one year free spare parts
2. These machines are easy to maintain and clean, no special tools are required.
3. Accuracy: ± 0.3%. (for 1000ml)
4. two servo motor control
5. Filling nozzles with suck function and other unique design of the main machine to avoid leakage or spill out .
6. CE approved , and with 20 years for manufacturing and designing filling machine .
The whole filling line is with servo motor controlled bottle Filling machine , capping machine and cap feeder ,labeling machine , and case packing system , total line .
| Model | Unit | GP5600 | ||||||
| Nozzle | PCS | 2 | 4 | 6 | 8 | 10 | 12 | 16 |
| Filling volume | Ml | 20-100ml, 100-1000ml, 200-3000ml, 500-5000ml | ||||||
| capacity | B/h | 600-800 | 720-1300 | 1200-1900 | 1400-2600 | 1600-3200 | 1800-4000 | 5000-6000 |
| Tolerance | % | ≤+-0.5% | ||||||
| voltage | V | Single or Three-phase four-wire system AC220V 380V ±10% | ||||||
| power | KW | 2 | 2.5 | 2.5 | 2.8 | 3.5 | 4 | 4.5 |
| Air pressure | MPA | 0.55-0.8 | ||||||
| Air consume | M3/min | 0.7 | 0.8 | 1 | 1.2 | 1.2 | 1.8 | 2 |
Features:
1. One year Guarantee , one year free spare parts
2. These machines are easy to maintain and clean, no special tools are required.
3. Accuracy: ± 0.3%. (for 1000ml)
4. two servo motor control
5. Filling nozzles with suck function and other unique design of the main machine to avoid leakage or spill out .
6. CE approved , and with 20 years for manufacturing and designing filling machine .
