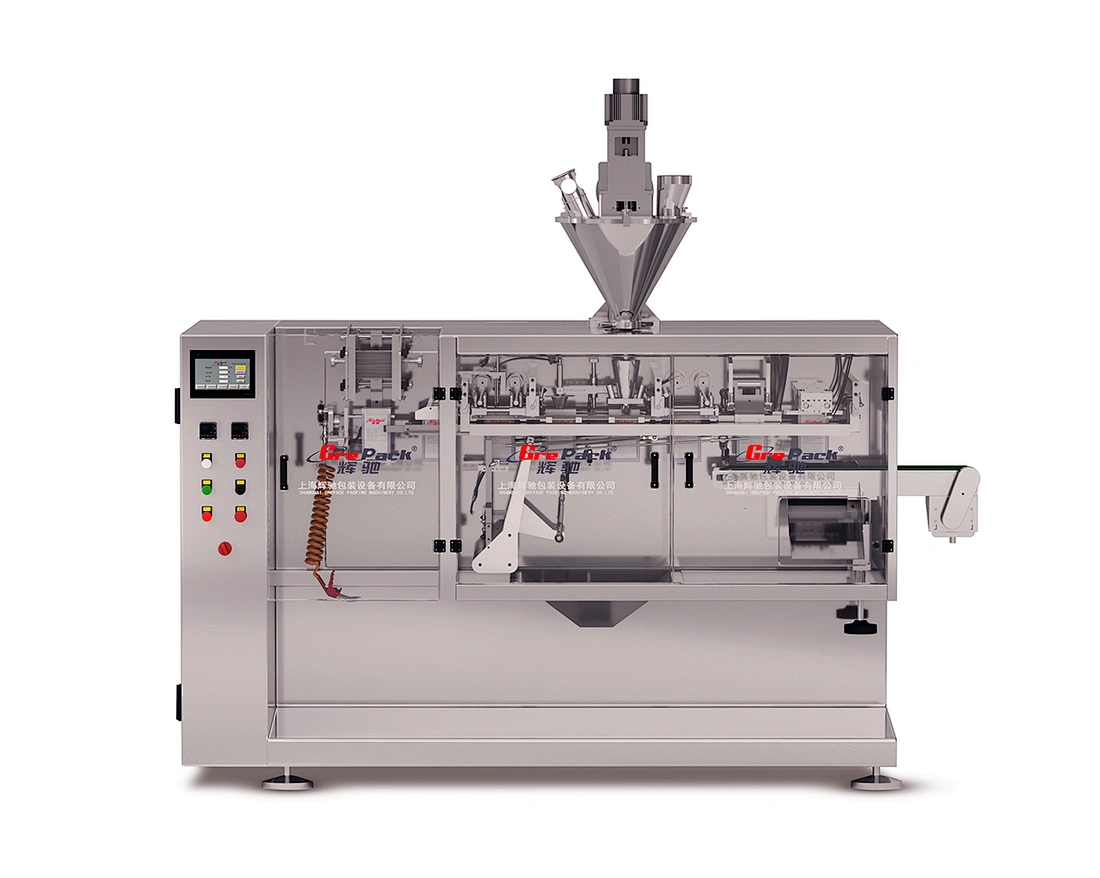

Horizontal type spout doypack Form fill seal packing machine
HC-180SP,HC-240SP
Quantity:
stand up /doypack spout pouch Form Fill Seal and packing machine
The machine can automatically finish bag forming doypack/stand up pouch filling, sealing with top spout or slant spout , (can make flat pouch with spout too )
easy tear notch making, print date, finished bag discharged. nitrogen flushing, unique bag shape ,hanging hole and Round corner punching are optional.
Parameters
Characteristics:
1) PLC control , English and man-machine interface, operating easy and simple maintain .
2) Advanced photoelectric sensor tracking system and servo motor pull for precise bag width and position of film.
3) versatile machine could make doy pack bag with top spout or slant spout , unique bag shape could be designed according to requirement .
4) independent digital temperature controller for vertical and horizontal sealing, intuitive and accurate.
5) easy and fast adjustment of change over, the machine has strength extensibility, could fill two or even more products into one bag by added filling device .
6) smooth performance and low noise, perfect package appearance, Sensible safety device and no pollution during production to get Friendly working environment
The machine can automatically finish bag forming doypack/stand up pouch filling, sealing with top spout or slant spout , (can make flat pouch with spout too )
easy tear notch making, print date, finished bag discharged. nitrogen flushing, unique bag shape ,hanging hole and Round corner punching are optional.
Parameters
| Model | HC-180SP | HC-240SP |
| Measuring range | 100-1000ml | 100-2000ml |
| measuring method | liquid filler /powder auger filler /granule weigher | liquid filler /powder auger filler /granule weigher |
| bag size | Height 110-250mm width90-180mm | Height 120-320mm width120-240mm |
| Capacity(max) | 30-50 bags/min depends on volume (duplex model with 70-80BPM) | 30-50 bags/min depends on volume (duplex model with 70-80BPM) |
| Control style | PLC+ English touch screen | PLC+ English touch screen |
| Power | 9KW | 10.5 kw |
| Power supply | AC 380V 50Hz or custom | AC 380V 50Hz or custom |
| Air pressure | 0.6Mpa-0.8MPA | 0.6Mpa-0.8MPA |
| Weight | N.W.:2150Kg | N.W.:3000Kg |
| Dimensions(mm) | 6600(L)×1110(W)×1500(H) | 7000(L)×1110(W)×1500(H) |
| Bag shape | Stand up pouch with spout on top or corner | Stand up pouch with spout on top or corner |
1) PLC control , English and man-machine interface, operating easy and simple maintain .
2) Advanced photoelectric sensor tracking system and servo motor pull for precise bag width and position of film.
3) versatile machine could make doy pack bag with top spout or slant spout , unique bag shape could be designed according to requirement .
4) independent digital temperature controller for vertical and horizontal sealing, intuitive and accurate.
5) easy and fast adjustment of change over, the machine has strength extensibility, could fill two or even more products into one bag by added filling device .
6) smooth performance and low noise, perfect package appearance, Sensible safety device and no pollution during production to get Friendly working environment
