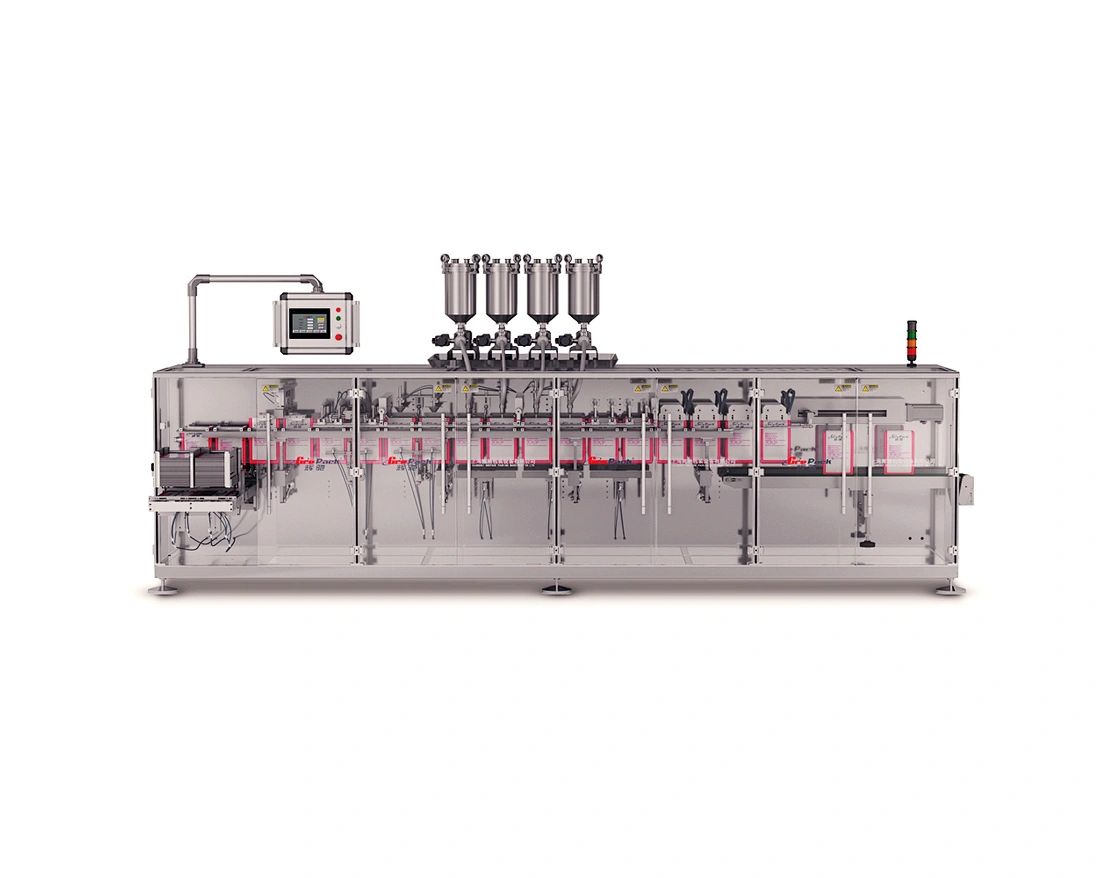

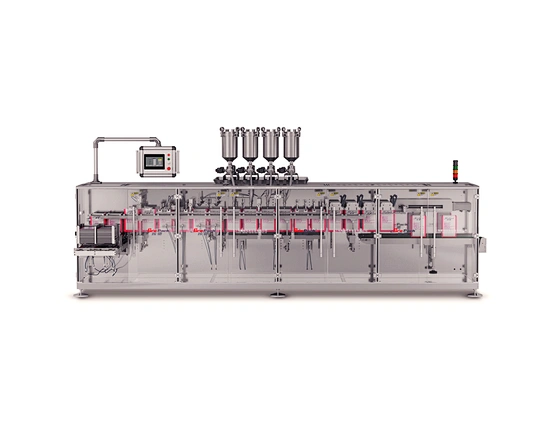

Horizontal type premade bag packing machine
HC-180G,HC-210G,HC-240G,HC-280G,HC-330G
Quantity:
Brief introduction

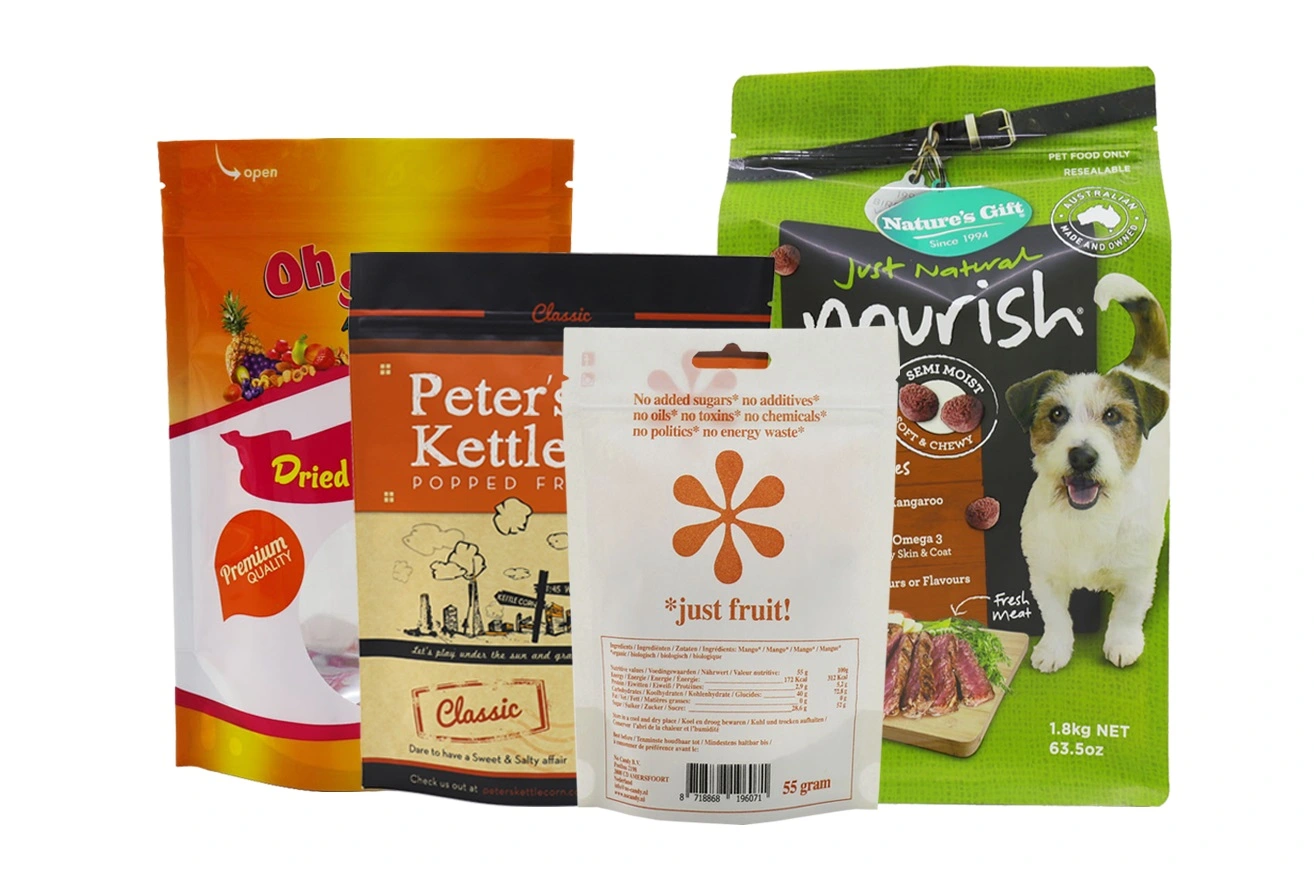

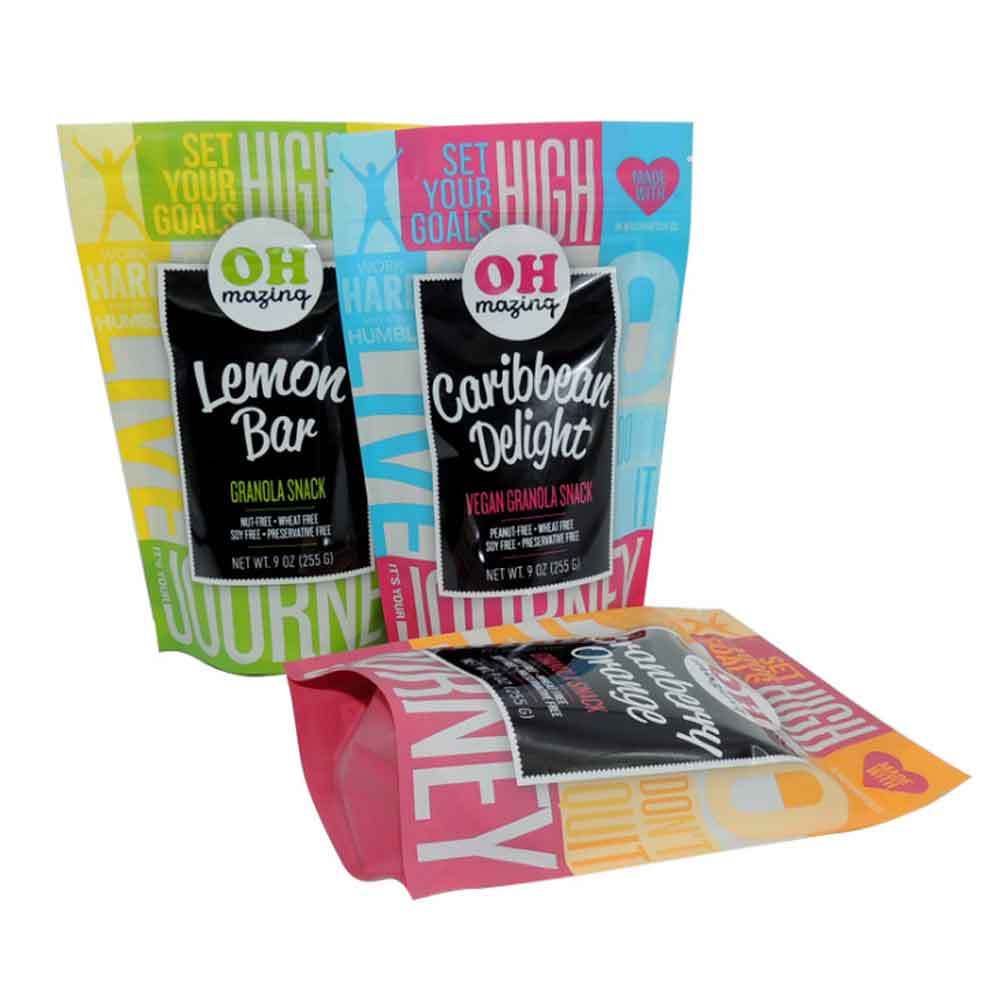

The machine is an automatic packing machine for premade bags with or without zipper. It can meet the requirment which needs different specifications, big or small volume but small capacity. It can not only pack 3-side or 4-side sealed bag, but even also bags with hanging hole, standing pouches and shaped bags and doypack bag with corner spout etc. It is applicable of powder,granule,liquid,paste and blocks etc by using different measuring devices. It is convenient to switch the packing type .Parameters
| Model | Bag Size(W*H) | Max Volume | Fillers | Speed | Power | Dimension | Weight |
HC-180G | 60mm×80mm (Min.) | 500ml | liquid filler /powder auger filler /granule weigher | 30-60ppm | 1.8kw | 1990mm(L) 970mm(W) 1390mm(H) | 700kg |
| 180mm×300mm (Max.) | |||||||
HC-210G | 90mm×110mm (Min.) | 1200ml | liquid filler /powder auger filler /granule weigher | 30-60ppm | 4.5kw | 3120mm(L) 970mm(W) 1400mm(H) | 1000kg |
| 210mm×310mm (Max.) | |||||||
HC-240G | 120mm×120mm (Min.) | 2000ml | liquid filler /powder auger filler /granule weigher | 30-50ppm | 5.5kw | 3600mm(L) 1100mm(W) 1500mm(H) | 1800kg |
| 240mm×320mm (Max.) | |||||||
HC-280G | 130mm×120mm (Min.) | 3000ml | liquid filler /powder auger filler /granule weigher | 30-50ppm | 6.5kw | 4100mm(L) 1020mm(W) 1500mm(H) | 2000kg |
| 280mm×400mm (Max.) | |||||||
HC-330G | 140mm×180mm (Min.) | 4000ml | liquid filler /powder auger filler /granule weigher | 20-30ppm | 2.5kw | 4800mm(L) 1020mm(W) 1500mm(H) | 2700kg |
Features:
1. Equipped with different metering devices,
it can realize packing different material such as powder, liquid, granule, sauce etc.
2 .Various bag type, it is very easy to change.
3. Simple in structure, easy to operate
4. Main electrical components are from Mitsubishi Japan , Schneider France , Keyence Japan and so on .
5. Sealings with hot seal and cold sealing with smooth sealing effect
6. No bag open , no fill and seal to save premade bags
7.Hang hole cutting and top spout adding are optional .
