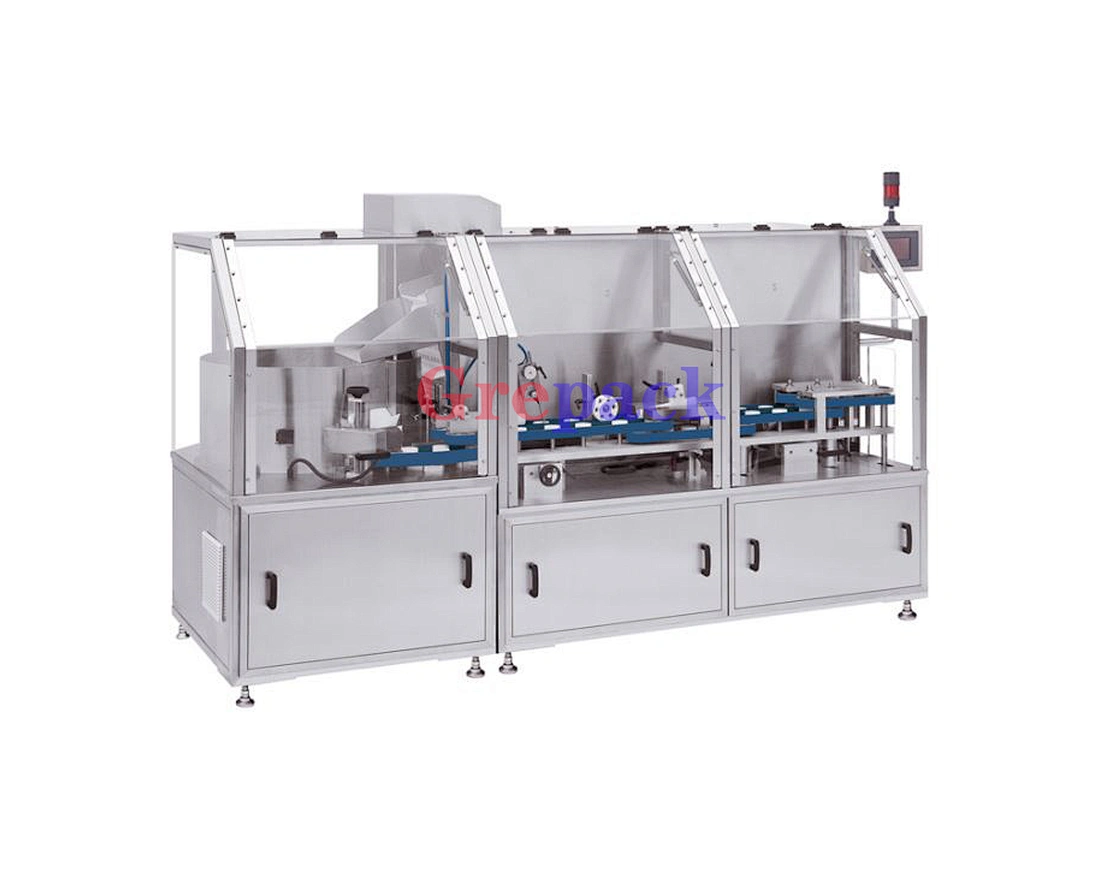

Horizontal type high speed bottle unscrambler
Horizontal type high speed bottle unscrambler
Quantity:
Introduction
The High speed Automatic Bottle Unscrambler Machine is with high speed and high compatibility which are applicable to plastic bottles of all shapes, such as round bottles, square bottles, flat bottles, oval bottles, etc.
Specification
Main Features:
1. High speed and high compatibility which are applicable to plastic bottles of all shapes, such as round bottles, square bottles, flat bottles, oval bottles, etc.
2. With the function of inversed bottles and overturned bottles detection and automatic rejection.
3. Label capacity of storage bin which ensures subsequent filling smoothly.
The High speed Automatic Bottle Unscrambler Machine is with high speed and high compatibility which are applicable to plastic bottles of all shapes, such as round bottles, square bottles, flat bottles, oval bottles, etc.
Specification
| Rate of production | 50-150 bottles/min 50Ml-200ml bottles ≤9000 bottles/hour 800ml bottles ≤6000 bottles/hour 1000mL bottles ≤4800 bottles/hour |
| Common type | round, square, flat square, special-shaped plastic bottles |
| Bottle specifications | 15-1000ml |
| Bottle diameter | φ20~φ100mm |
| Bottle height | 40~240mm |
| Power supply | AC220V50/60Hz |
| Air pressure and consumption | 0.6~0.8 MPa, 3.5 L/min |
| Power | 0.6 Kw |
| Overall dimension(L*W*H) | 2080mm*1200mm*1600mm |
| Machine weight | About 430 Kg |
Main Features:
1. High speed and high compatibility which are applicable to plastic bottles of all shapes, such as round bottles, square bottles, flat bottles, oval bottles, etc.
2. With the function of inversed bottles and overturned bottles detection and automatic rejection.
3. Label capacity of storage bin which ensures subsequent filling smoothly.
