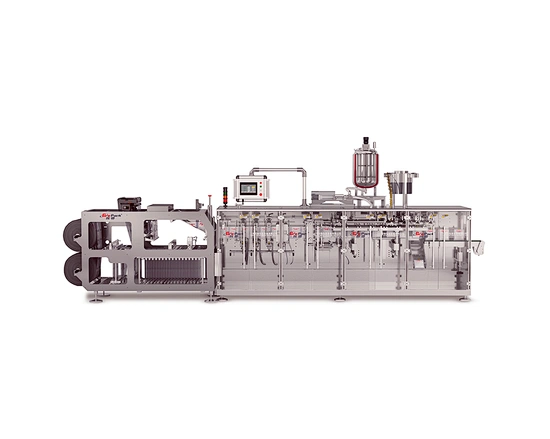

Horizontal type Form fill seal doypack bag packing machine
HC-180S,HC-240S,HC-330S
Quantity:
Doypack pouch Packing Machine
Stand up Pouch automatic form fill seal Packing Machine can meet the requirement of packing bags from film With 2 filling nozzles, it can pack fast and is suitable for powder, granule, liquid, sauce, blocks etc. This machine is film-form-seal type which can not only make the 3or 4 side seal sachets or pouches but also make the doypack pouch which saves the cost and improve the production efficiency.
Advantages
1) Omron PLC control, English and man-machine interface, operating easy and simple maintain.
2) Advanced photoelectric sensor tracking system and servo motor pull for precise bag width and position of film.
3) Omron Motion control system : for example , when you change the speed of the main machine on the touch screen , then speed of the film unwind , film pulling and piston filling will be changed automatically ..
with Omron motion control system , you will save lots of film and time during adjusting , because all speed synchronous .
4) the machine with automatic film align and adjust device
5) Omron 's PLC has the remote-control function , if there is fault during the production in your factory , you can send the report to us , and we can fix it online .
Stand up Pouch automatic form fill seal Packing Machine can meet the requirement of packing bags from film With 2 filling nozzles, it can pack fast and is suitable for powder, granule, liquid, sauce, blocks etc. This machine is film-form-seal type which can not only make the 3or 4 side seal sachets or pouches but also make the doypack pouch which saves the cost and improve the production efficiency.
| Modle | HC-180S | HC-240S | HC-330S |
| Pouch Size | 90*110mm(Min) 180*260mm(Max) | 100*120mm(Min) 240*320mm(Max) | 150*200mm(Min) 330*450mm(Max) |
| measuring method | liquid filler /auger filler /weigher | liquid filler /auger filler /weigher | liquid filler /auger filler /weigher |
| Filling capacity | 1200ml | 2000ml | 4000ml |
| Packing capacity | 40-50ppm (duplex model 100PPM) | 30-50ppm (duplex model 100PPM) | 30-40ppm (duplex model 90PPM) |
| Powder | 8KW | 10kw | 12KW |
| Air consumption | 200NL/min | 300NL/min | 400NL/min |
| Machine Dimensions | 6450mm(L) 1100mm(W) 1400mm(H) | 7500mm(L) 1250mm(W) 1550mm(H) | 7800mm(L) 1100mm(W) 1400mm(H) |
| Weight | 2300kg | 2800kg | 3400kg |
| Function | Doypack, Shape, Hanging Hole | Doypack, Shape, Hanging Hole, | Doypack, Shape, Hanging Hole |
Advantages
1) Omron PLC control, English and man-machine interface, operating easy and simple maintain.
2) Advanced photoelectric sensor tracking system and servo motor pull for precise bag width and position of film.
3) Omron Motion control system : for example , when you change the speed of the main machine on the touch screen , then speed of the film unwind , film pulling and piston filling will be changed automatically ..
with Omron motion control system , you will save lots of film and time during adjusting , because all speed synchronous .
4) the machine with automatic film align and adjust device
5) Omron 's PLC has the remote-control function , if there is fault during the production in your factory , you can send the report to us , and we can fix it online .
