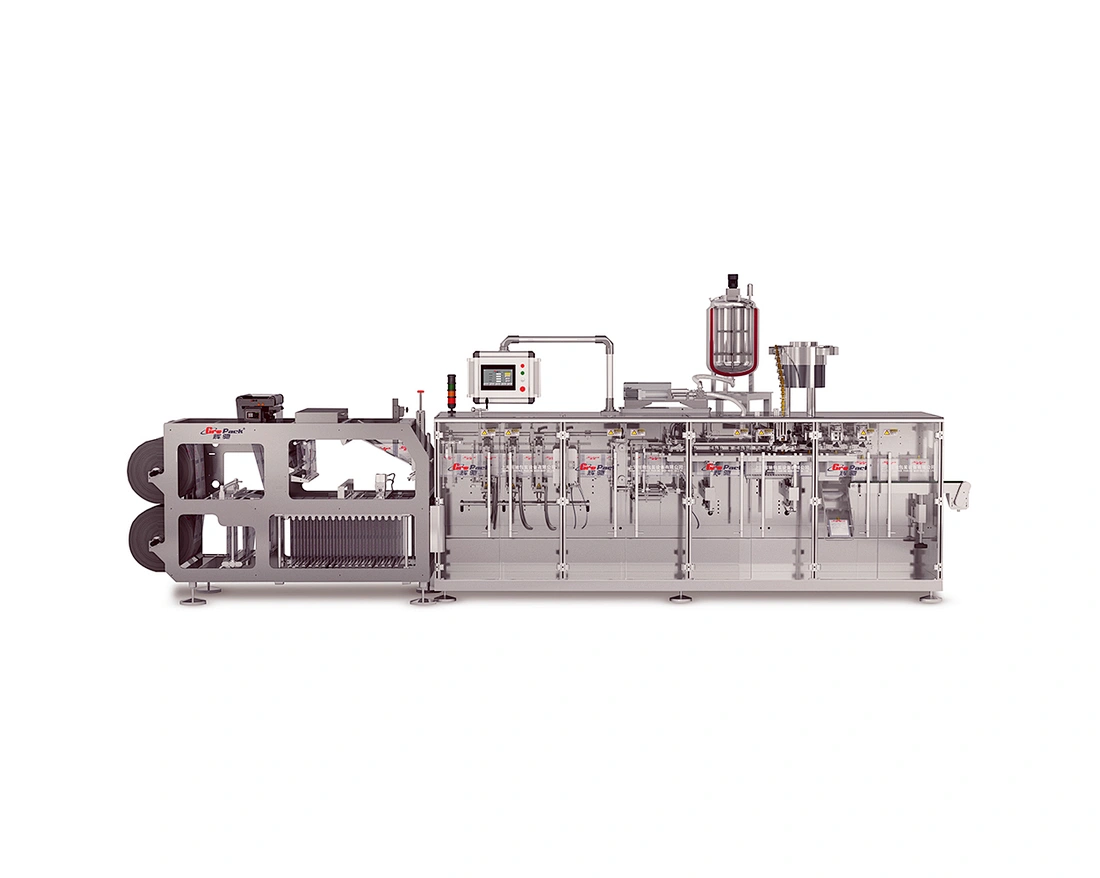

Horizontal form fill seal zipper doypack pouch packing machine
HC-180SZ,HC-240SZ,HC-330SZ
Quantity:
Zipper Ziplock Bag Poweder Packing Machine

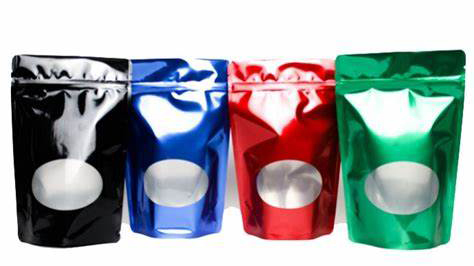

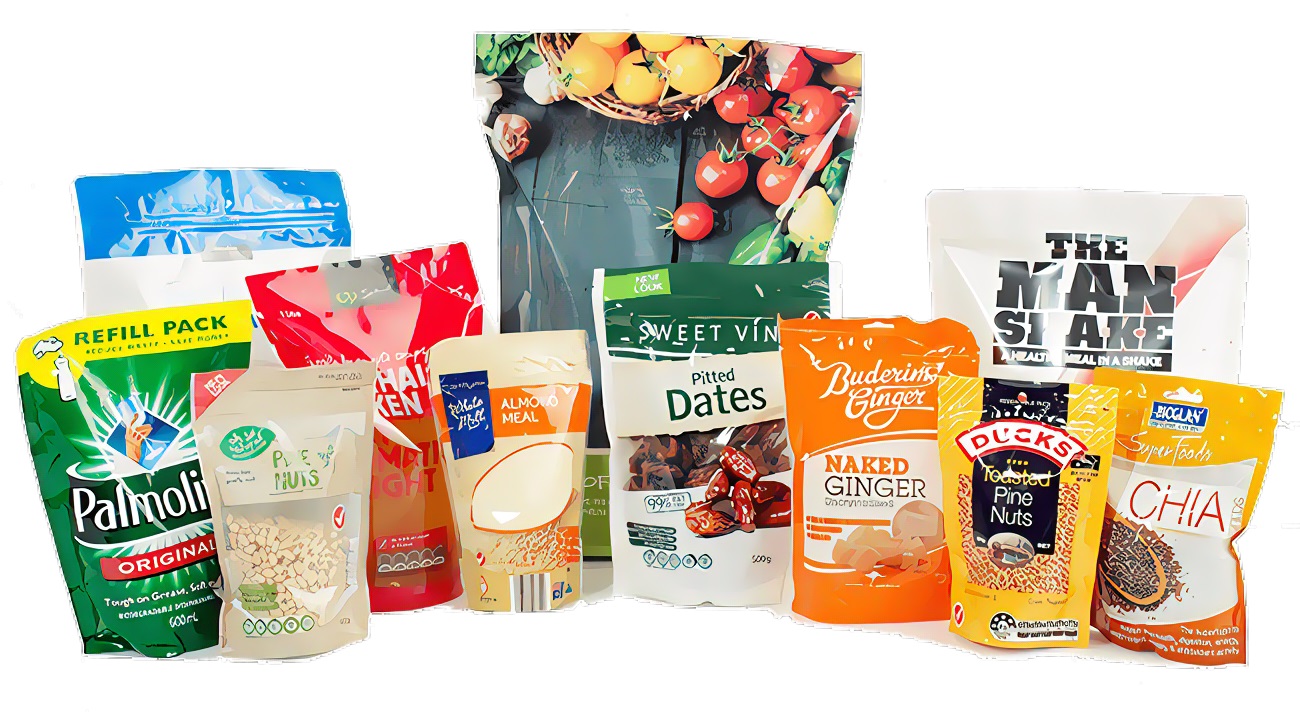

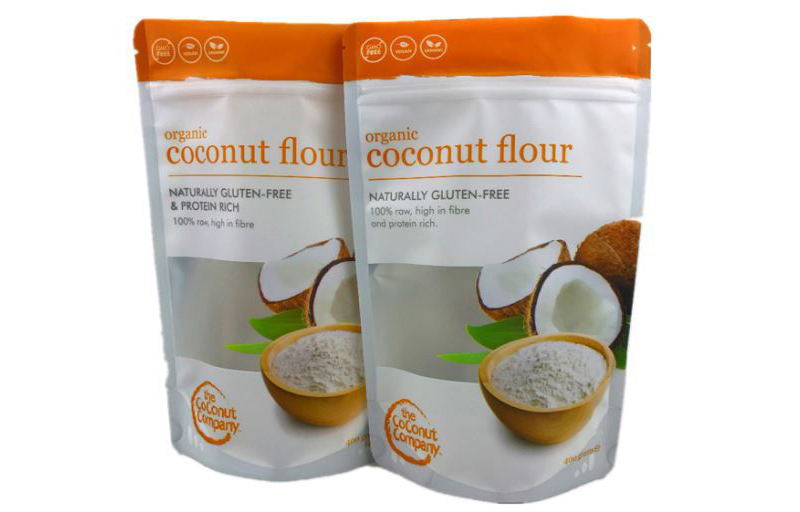

Stand up Pouch automatic form fill seal Packing Machine can meet the requirement of packing bags from film With 2 filling nozzles, it can pack fast and is suitable for powder, granule, liquid, sauce, blocks etc. This machine is film-form-seal type which can not only make the 3or 4 side seal sachets or pouches but also make the doypack pouch with zipper at same time, which saves the cost and improve the production efficiency.
Advantages
Omron PLC control, English and man-machine interface, operating easy and simple maintain.
Advanced photoelectric sensor tracking system and servo motor pull for precise bag width and position of film.
Omron Motion control system : for example , when you change the speed of the main machine on the touch screen , then speed of the film unwind , film pulling and piston filling will be changed automatically ..
with Omron motion control system , you will save lots of film and time during adjusting , because all speed synchronous .
Stand up Pouch automatic form fill seal Packing Machine can meet the requirement of packing bags from film With 2 filling nozzles, it can pack fast and is suitable for powder, granule, liquid, sauce, blocks etc. This machine is film-form-seal type which can not only make the 3or 4 side seal sachets or pouches but also make the doypack pouch with zipper at same time, which saves the cost and improve the production efficiency.
| Modle | HC-180SZ | HC-240SZ | HC-330SZ |
| Pouch Size | 90*110mm(Min) 180*260mm(Max) | 100*120mm(Min) 240*320mm(Max) | 150*200mm(Min) 330*450mm(Max) |
| measuring method | liquid filler /auger filler /weigher | liquid filler /auger filler /weigher | liquid filler /auger filler /weigher |
| Filling capacity | 1200ml | 2000ml | 4000ml |
| Packing capacity | 40-50ppm | 30-50ppm | 30-40ppm |
| Powder | 8KW | 10kw | 12KW |
| Air consumption | 200NL/min | 300NL/min | 400NL/min |
| Machine Dimensions | 6450mm(L) 1100mm(W) 1400mm(H) | 7500mm(L) 1250mm(W) 1550mm(H) | 7800mm(L) 1100mm(W) 1400mm(H) |
| Weight | 2300kg | 2800kg | 3400kg |
| Function | Doypack, Shape, Hanging Hole,Zipper | Doypack, Shape, Hanging Hole, Zipper | Doypack, Shape, Hanging Hole zipper |
Omron PLC control, English and man-machine interface, operating easy and simple maintain.
Advanced photoelectric sensor tracking system and servo motor pull for precise bag width and position of film.
Omron Motion control system : for example , when you change the speed of the main machine on the touch screen , then speed of the film unwind , film pulling and piston filling will be changed automatically ..
with Omron motion control system , you will save lots of film and time during adjusting , because all speed synchronous .
the machine with automatic film align and adjust device
Non-stop machine film changing function , when film run out, no need to stop machine with design of two film rolls ,enough film storage and connection tape detection.
Omron 's PLC has the remote-control function , if there is fault during the production in your factory , you can send the report to us , and we can fix it online .
