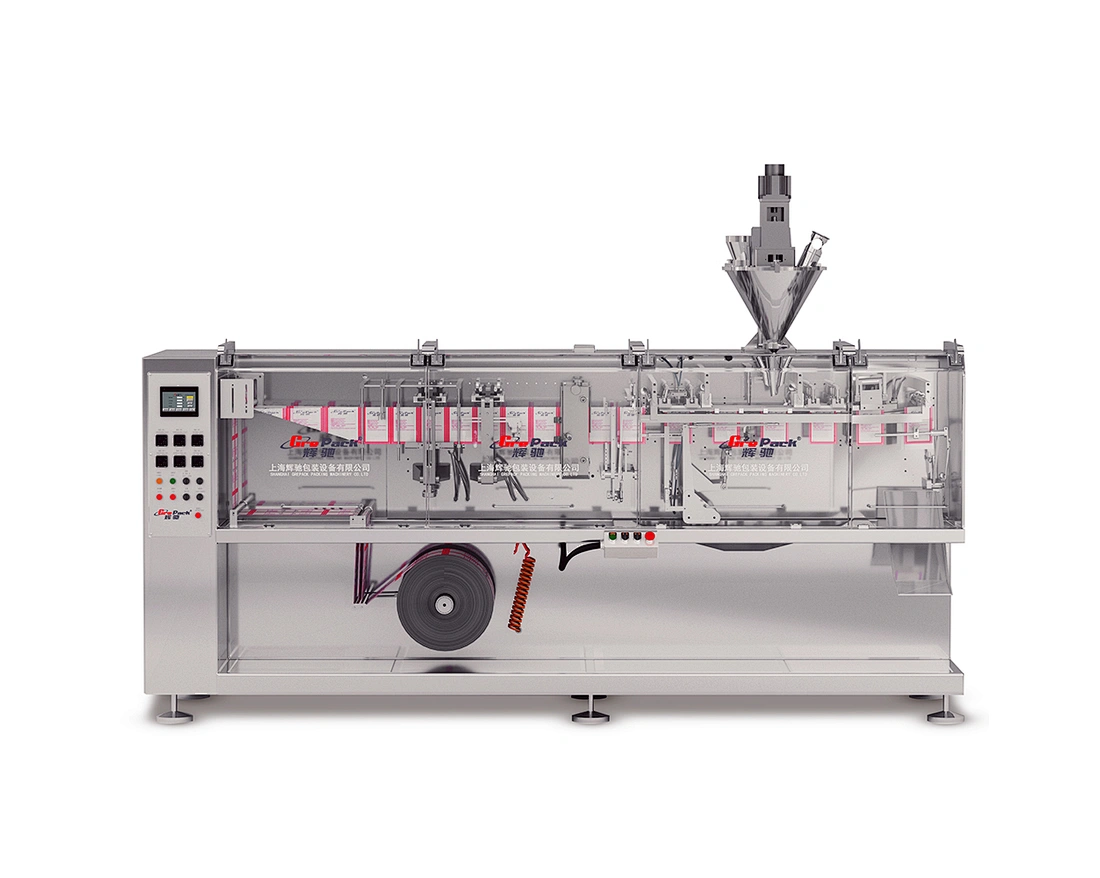

Horizontal form fill seal flat bag packing machine
HC-110
Quantity:
Three or four sides seal sachet packing machine can automatic finish bag forming, filling, easy tear notch making, print date, finished bag discharged. It can also make shaped pouch with mould .
Parameters
Characteristics:
1) PLC control, English and man-machine interface, operating easy and simple maintain.
2) Bagging, sealing and filling is relatively independent of the system
3) could fill powder, granule or liquid product by changing filling devices, two or even more products are nice with one machine.
4) Digital temperature controller for vertical and horizontal sealing, intuitive and accurate.
5) sanitary package for your product and perfect package appearance.
6) Easy and fast adjustment of change over, smooth performance and low noise Sensible safety device and no pollution during production to get Friendly working environment
Parameters
| Model | Bag Size(Width*Height) | Maximum Volume | Speed | Power | Dimension | Weight |
HC-110 | 50mm×50mm (Min.) | 60ml | 40-80ppm | 2kw | 2060mm(L) 750mm(W) 1400mm(H) | 600kg |
| 110mm×120mm (Max.) | ||||||
| HC110L | 50mm×50mm (Min.) | 60ml | 40-80ppm | 2kw | 2060mm(L) 750mm(W) 1400mm(H) | 600kg |
| 110mm×120mm (Max.) Make pouch linked | ||||||
HC-130 | 60mm×80mm (Min.) | 160ml | 40-80ppm | 3.5kw | 2850mm(L) 970mm(W) 1500mm(H) | 900kg |
| 140mm×180mm (Max.) | ||||||
HC-180 | 60mm×80mm (Min.) | 400ml | 40-80ppm | 4.5kw | 3500mm(L) 970mm(W) 1500mm(H) | 1400kg |
| 180mm×225mm (Max.) | ||||||
| HC-240 | 110mm×120mm (Min.) | 800ml | 40-80ppm | 5.5kw | 4050mm(L) 1070mm(W) 1500mm(H) | 2500kg |
| 240mm×320mm (Max.) |
Characteristics:
1) PLC control, English and man-machine interface, operating easy and simple maintain.
2) Bagging, sealing and filling is relatively independent of the system
3) could fill powder, granule or liquid product by changing filling devices, two or even more products are nice with one machine.
4) Digital temperature controller for vertical and horizontal sealing, intuitive and accurate.
5) sanitary package for your product and perfect package appearance.
6) Easy and fast adjustment of change over, smooth performance and low noise Sensible safety device and no pollution during production to get Friendly working environment
