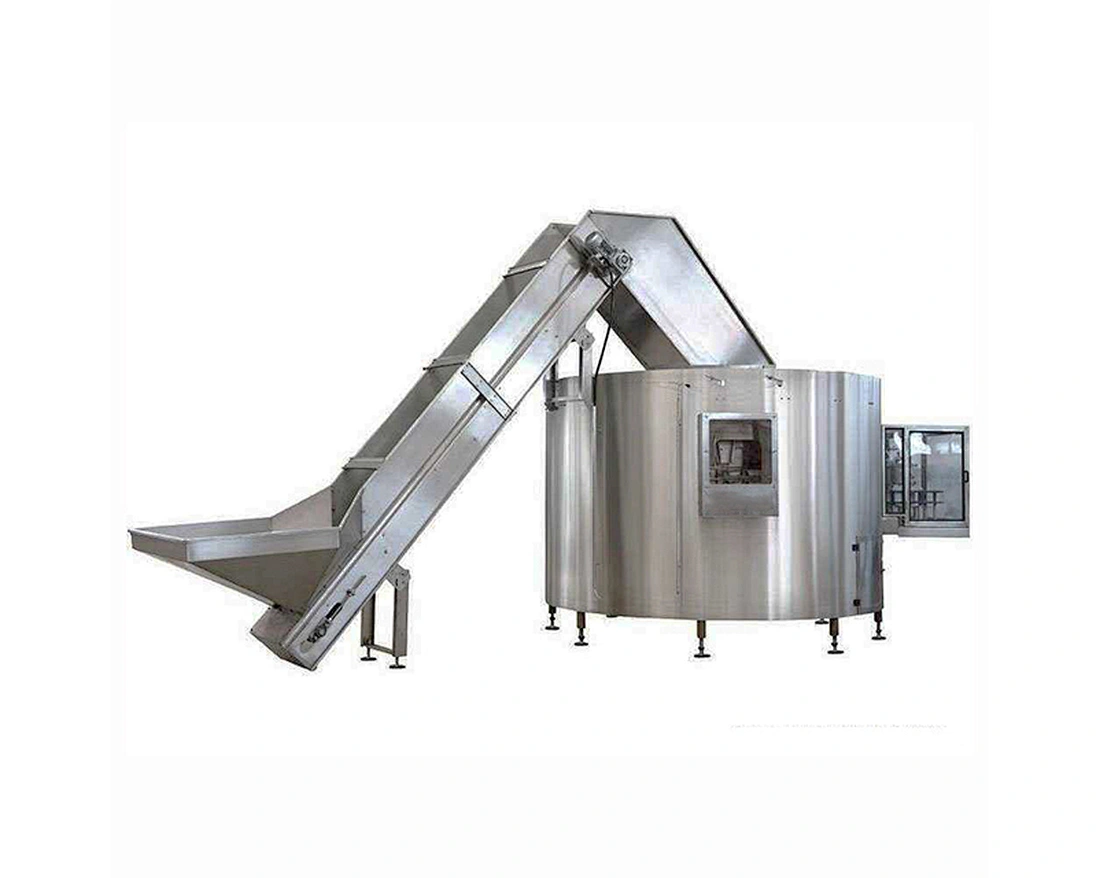

High speed rotary bottle unscrambler
HCLP- 2000A
Quantity:
The machine is used in ordering disordered polyester bottles. The disordered bottles are carried into the storing bottle section the ordering bottle machine. With the help of pushing force of the rotating disk, the bottles enter their position. With the function of the turning bottle device and the air-flow, the bottles are ordered into bottle mouth-up-position and are carried into the next process with the air-transfering type conveying bottle system. The machine adopts PLC computer control, frequency control to adjust its production capacity.
Specification
Specification
| Model | HCLP- 2000A |
| Production speed (B / h) | (500ml):8000-10000 |
| Power (kw) | 3.0 |
| Voltage (V) | 220 |
| Applicable bottle diameter (mm) | 50-90 |
| Applicable bottle height (mm) | 150-340 |
| bottle size (mm) | 350-1200ml/φ50-90 |
| Weight (kg) | about 2000 |
| Air source | 0.5pa |
