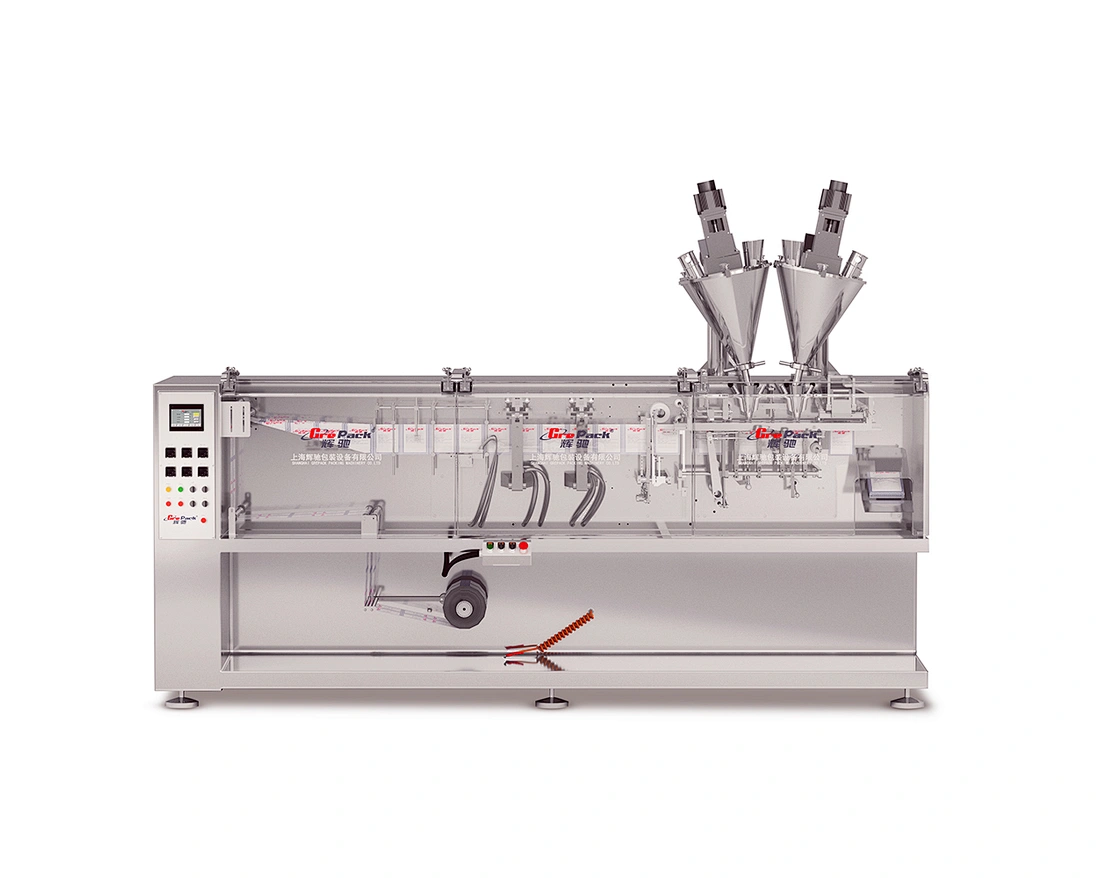

High speed Duplex and quardruplex form fill seal pouch packing machine
HC-180D,HC-360Q
Quantity:
High speed duplex or quaruplex model Three or four sides seal sachet packing machine can automatic finish bag forming, filling, easy tear notch making, print date, finished bag discharged. It can also make shaped pouch with mould .
Characteristics:
1) PLC control , English and man-machine interface, operating easy and simple maintain .
2) Bagging, sealing and filling is relatively independent of the system
3) could fill powder, granule or liquid product by change filling device,two or even more products are nice with one machine.
4) Digital temperature controller for vertical and horizontal sealing, intuitive and accurate.
5) sanitary package for your product and perfect package appearance.
6) Easy and fast adjustment of change over, smooth performance and low noise Sensible safety device and no pollution during production to get Friendly working environment
| Model | HC-180D | HC-360Q |
| bag size | Min:60*75mm Max:90mm-180mm | Min:60*75mm Max:90mm-180mm |
| measuring method | servo auger screw ,servo piston,cups or weighter | servo auger screw ,servo piston,cups or weighter |
| Measuring range | 100ml | 60ml |
| Capacity(max) | 120 bags/min | 200bags/min |
| Control style | PLC+ English touch screen | PLC+ English touch screen |
| Power | 5.5KW | 8.5KW |
| Power supply | AC 380/220V 60HZ | AC 380/220V 60HZ |
| Air pressure | 0.6Mpa | 0.6Mpa |
| Weight | N.W.:1600Kg | N.W.:2500Kg |
| Dimensions(mm) | 4500(L)×970(W)×1535(H) | 7500(L)×970(W)×1535(H |
| Bag shape | Three or four side sealing | Three or four side sealing |
Characteristics:
1) PLC control , English and man-machine interface, operating easy and simple maintain .
2) Bagging, sealing and filling is relatively independent of the system
3) could fill powder, granule or liquid product by change filling device,two or even more products are nice with one machine.
4) Digital temperature controller for vertical and horizontal sealing, intuitive and accurate.
5) sanitary package for your product and perfect package appearance.
6) Easy and fast adjustment of change over, smooth performance and low noise Sensible safety device and no pollution during production to get Friendly working environment
