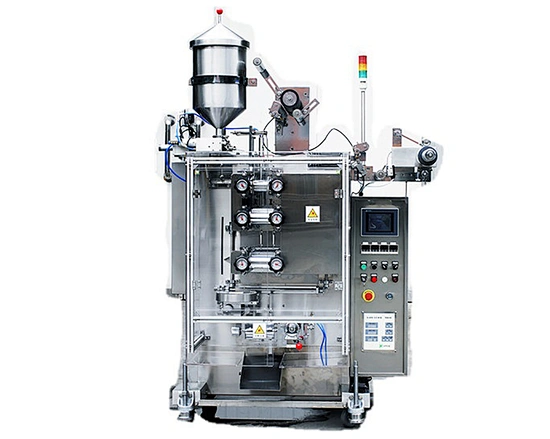

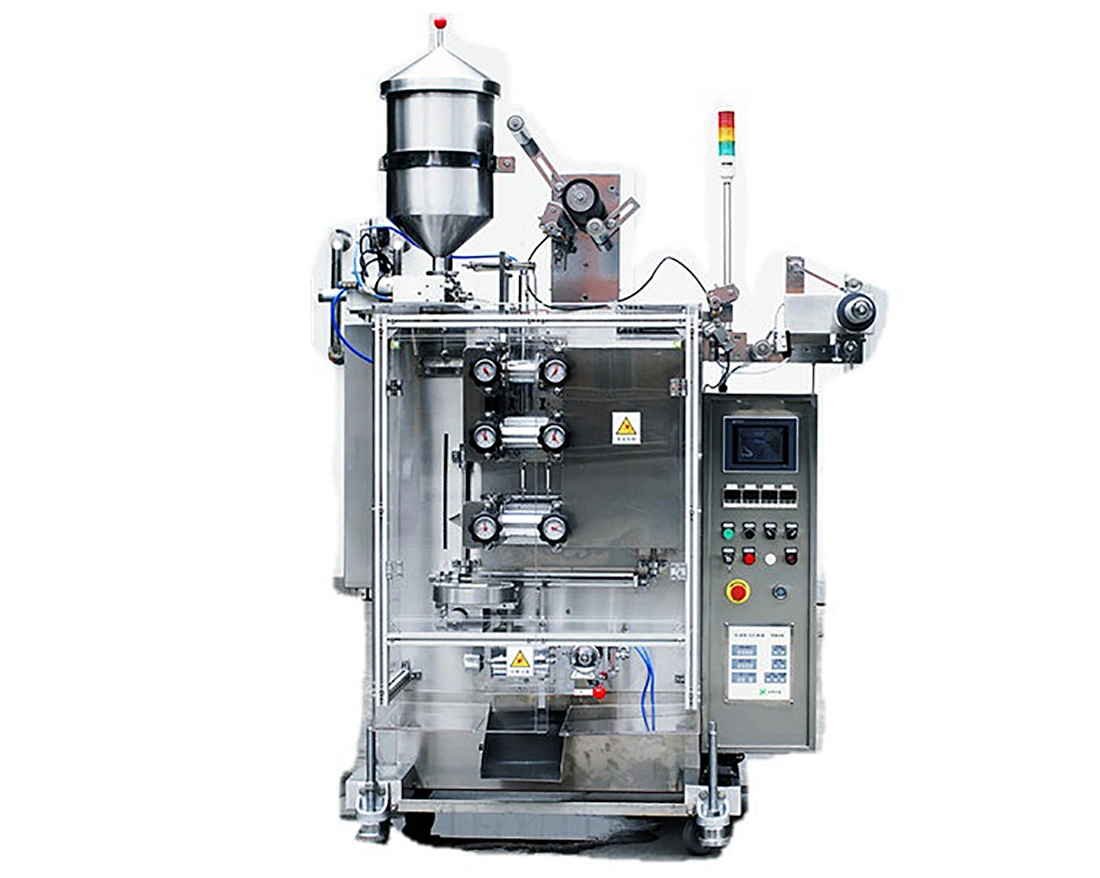

Continuous high speed vertical packing machine
HC-J55
Quantity:
Introduction:
The machine specialize in Jelly or cosmetic product, customizing feeding system makes sure the liquid will not leak out,double inverter control provides machine accuracy action. Adopt cylinder to achieve liquid filling suction back, promise a good finished product appearance. PLC system center, Sick sensor for signal feedback. Whole machine made of SUS 304 , good quality and best performance.
Main Technical Parameters
The machine specialize in Jelly or cosmetic product, customizing feeding system makes sure the liquid will not leak out,double inverter control provides machine accuracy action. Adopt cylinder to achieve liquid filling suction back, promise a good finished product appearance. PLC system center, Sick sensor for signal feedback. Whole machine made of SUS 304 , good quality and best performance.
Main Technical Parameters
| Type | HC-J55 |
| Bag size | 3 side seal width ：40~90mm 4 side sealed width：40~105mm Universal for 3 & 4 side sealed sachet |
| Packing Speed | 100-120 Pack per min |
| Filling range | Customized 1-50ml |
| Power voltage | 380v, 50Hz, 5KW |
