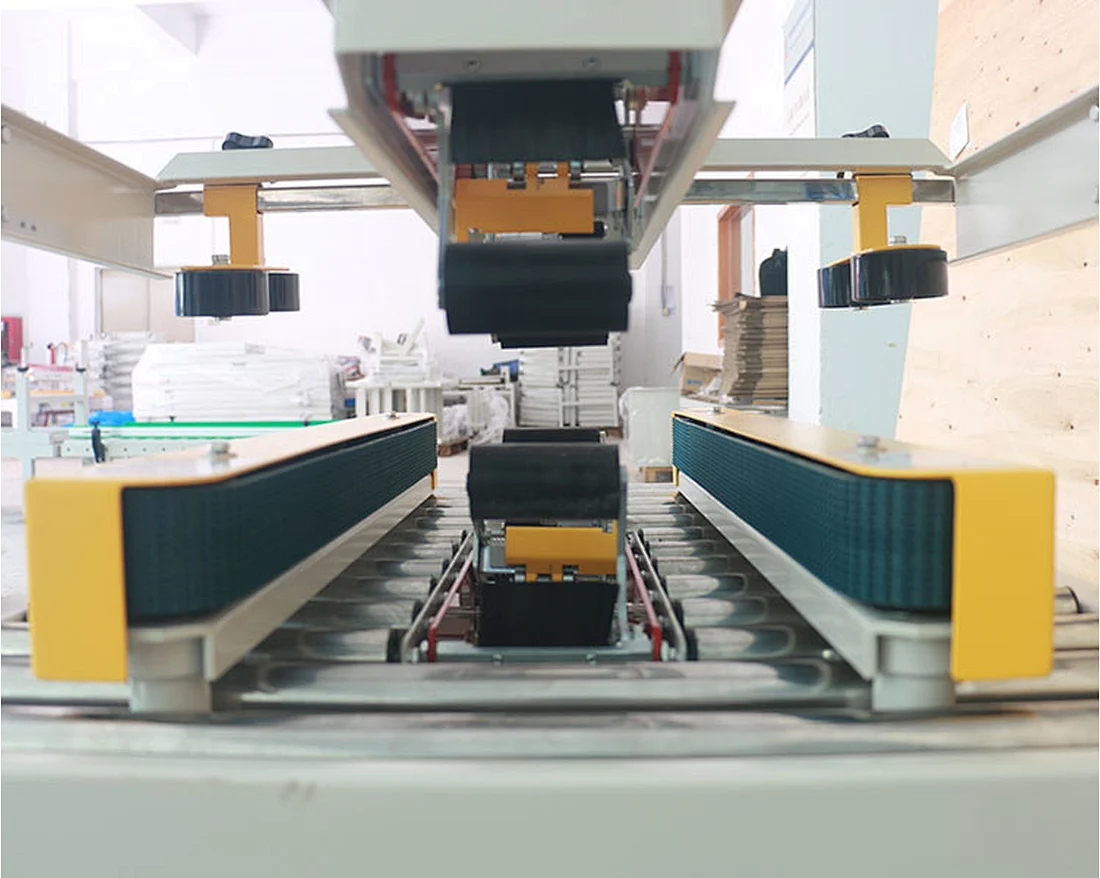

case sealing machine
HC-12,HC-25,HC-35
Quantity:
Introduction
This machine adopt advanced software technology and has advanced international advanced tech level.
This utility model carton packer is use for automatically packing of kinds of cups,cans,bottles etc into opened empty carton box. And this carton packer suitable for the carton packing process of water,beverage,oil,etc production line, and also suitable for bottle/cans shape products carton packing work in other industries.
Pick Up and Place Carton Packer Machine have two types:
1) Could divide into Standard Speed Type and High Speed Type;
2) Also could divide into Swing Arm Type Carton Packer Machine and Robot Arm Carton Packer Machine.
3) Could applicable for various bottles, cups, Jars, Bags, etc
HC-series pick up and place type carton packer normally need match with carton erector and carton sealer machine working together,for finished carton box open, carton packing and carton sealing works.
Also could according to client’s different products special requirement to improve design for achieved carton packer works.
Paramenters
Machine Characteristics:
1.Adopt intelligent HMI to control and display machine running action status and with alarm function in real time.
2. Through buffer device to realize packing product into empty carton box smoothly, and minimize the possibility of injury to the products.
3. Carton Packing speed is adjustable (controlled by frequency converter).
4. Automatic alarm for lack of products(bottles etc), effectively reducing the probability of carton packing error.
5. Equipped with the safety protection function of accidental or fault gives alarm warning and the indicator light flashes.
This machine adopt advanced software technology and has advanced international advanced tech level.
This utility model carton packer is use for automatically packing of kinds of cups,cans,bottles etc into opened empty carton box. And this carton packer suitable for the carton packing process of water,beverage,oil,etc production line, and also suitable for bottle/cans shape products carton packing work in other industries.
Pick Up and Place Carton Packer Machine have two types:
1) Could divide into Standard Speed Type and High Speed Type;
2) Also could divide into Swing Arm Type Carton Packer Machine and Robot Arm Carton Packer Machine.
3) Could applicable for various bottles, cups, Jars, Bags, etc
HC-series pick up and place type carton packer normally need match with carton erector and carton sealer machine working together,for finished carton box open, carton packing and carton sealing works.
Also could according to client’s different products special requirement to improve design for achieved carton packer works.
Paramenters
| Model | HC-12 | HC-25 | HC-35 |
| Speed: | 7-12cartons/min | 15-18cartons/min | 20-25cartons/min |
| Applicable Products: | Various Bottles, Cans, Cups etc Products | ||
| Main Supply Power: | About 4KW | About 5KW | About 8KW |
| Voltage: | 220V/380V,3Phase, 50Hz/60Hz | ||
| Air Consumption: | 1m3/h | 1.5m3/h | 2m3/h |
| Air Pressure: | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa |
| Working Noise: | ≤75db | ≤75db | ≤80db |
| Machine Weight: | About 1250KG | About 1550KG | About 1750KG |
| Machine Dimension: | 2200*1700*2250mm | 2500*1800*2300mm | 2800*1800*2300mm |
Machine Characteristics:
1.Adopt intelligent HMI to control and display machine running action status and with alarm function in real time.
2. Through buffer device to realize packing product into empty carton box smoothly, and minimize the possibility of injury to the products.
3. Carton Packing speed is adjustable (controlled by frequency converter).
4. Automatic alarm for lack of products(bottles etc), effectively reducing the probability of carton packing error.
5. Equipped with the safety protection function of accidental or fault gives alarm warning and the indicator light flashes.
