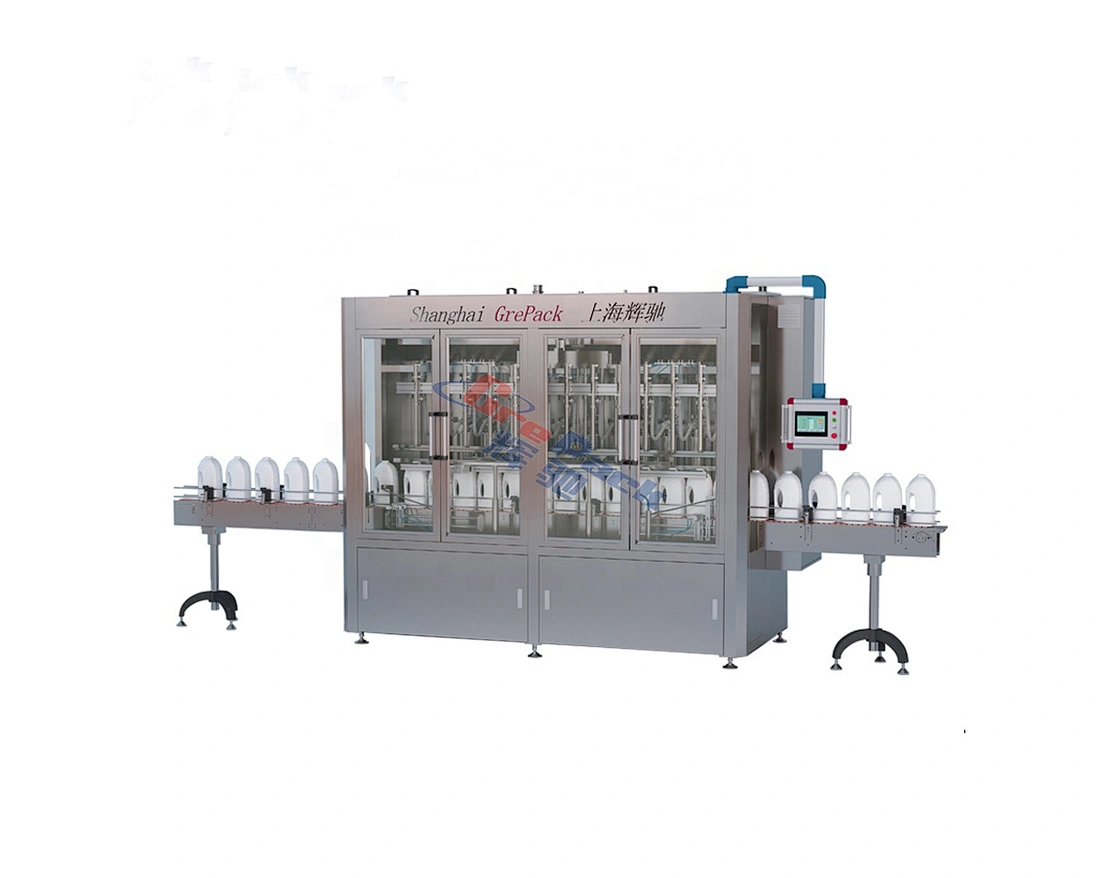

Automatic Servo Piston Filling Machine for Lubricant & Motor Oil
GP5600
Quantity:
Automatic Lube Oil Filling Machine
Automatic lube oil filling machine which is specially designed & used at lube oil filling machine, each of machine technical details based on lube oil property. Adopt Suck-back nozzle deisgn to guarantee no-dripping issue. Piston driven by servo motor allows filling accuracy & stability.
PRODUCT SPECIFICATIONS
Advantages
1）Different volume can be set on HMI directly;
2）Fast adjustment for different size bottles within 10-20min;
3）Piston driven by servo motor, high accuracy within +/-0.5% and high stability;
4）Hygienic tri-clamps connection, easy to remove and clean, comply with GMP standards;
5）nozzle and piston are designed for oil related products to assure no foaming, no dripping;
Automatic lube oil filling machine which is specially designed & used at lube oil filling machine, each of machine technical details based on lube oil property. Adopt Suck-back nozzle deisgn to guarantee no-dripping issue. Piston driven by servo motor allows filling accuracy & stability.
PRODUCT SPECIFICATIONS
| Model | Unit | GP5600 | ||||||
| Nozzle | PCS | 2 | 4 | 6 | 8 | 10 | 12 | 16 |
| Filling volume | Ml | 20-100ml, 100-1000ml, 200-3000ml, 500-5000ml | ||||||
| capacity | B/h | 600-800 | 720-1300 | 1200-1900 | 1400-2600 | 1600-3200 | 1800-4000 | 5000-6000 |
| Tolerance | % | ≤+-0.5% | ||||||
| voltage | V | Single or Three-phase four-wire system AC220V 380V ±10% | ||||||
| power | KW | 2 | 2.5 | 2.5 | 2.8 | 3.5 | 4 | 4.5 |
| Air pressure | MPA | 0.55-0.8 | ||||||
| Air consume | M3/min | 0.7 | 0.8 | 1 | 1.2 | 1.2 | 1.8 | 2 |
Advantages
1）Different volume can be set on HMI directly;
2）Fast adjustment for different size bottles within 10-20min;
3）Piston driven by servo motor, high accuracy within +/-0.5% and high stability;
4）Hygienic tri-clamps connection, easy to remove and clean, comply with GMP standards;
5）nozzle and piston are designed for oil related products to assure no foaming, no dripping;
